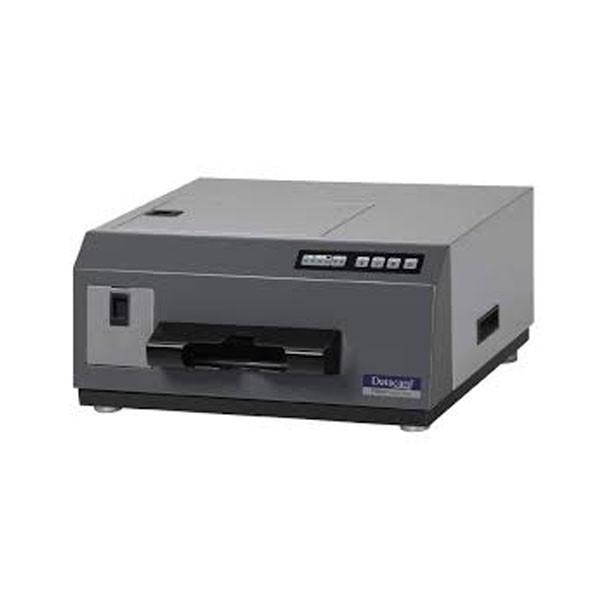

SURYS Passport Printer Hiprint P4000

Passport Printer Hiprint P4000

Print technology :
– 4-color thermal inkjet printing
Print resolution :
– 4800dpi (1200 nozzles per inch per color, 4 colors)
 Black: 1200 x 1200 dpi
 Color: 2400 x 1200 dpi per color
Print mode :
Text and Photo mode aimed at speeding-up printing process
RFID reader/ encoder :
USB 2.0 Full speed (12Mbps), USB CCID protocol, PC/SC 2.01
USB bus powered, normal operating current 200mA
Baudrate up to 848Kbps
– ICAO 9303 compliant (MRTD), ISO14443 Part 1 to 4 type A/B, T=CL & Mifare
 Suitable for biometric data personalization as per ICAO 9303
– Two types of antenna mounting depending on booklet characteristics:
 Mobile antenna (standard offering): encoding while printing (chip within booklet back cover)
 Fixed antenna (option): encoding before/ after printing (chip within booklet front cover or other cases to be evaluated)
Digital Camera :
– 2 Mpixels color CMOS sensor, fixed focus
– USB 2.0
– Offset registration, data capture (full page) and verification
Available inks :
P4000p: pigmented Ink: C, M, Y, K (standard offer)
P4000d: dye Ink: C, M, Y + Pigmented K (optional)
Cartridge capacity :
Up to 8,000 booklets, 1 cartridge per color C, M, Y, K depending on booklet design and printer’s use and operation (check with your SURYS contact)
One set of C, M, Y, K ink supplied with the machine
 C, M, Y: 26ml
 K: 78.4ml
LCD :
Graphical monochrome LCD aimed at managing daily operations such as:
 Printer’s status
 Ink cartridge level display to ease users’ monitoring
 Fully automated print head alignment procedure
 Language selection: English, Spanish, German, French, Italian
Interface :
Single connection, High-speed USB 2.0, B-type connector
Internal USB Hub (all slots allocated)
USB cable, 1.8 meter length supplied
Operating system :
Windows 10 (32 & 64 bits), Win 7 (32 & 64 bits)
Printer dimensions :
Height: 26.5cm; Width: 51.5cm; Depth: 52cm (H 10.43 ” ; W 20.26 ”; D 20.47 ”)
Power consumption :
32W (as per ISO 10561 letter pattern)
Approx. 4W when idle
Input voltage :
100/ 240 V AC (±10%), 4A
EU power cord, 1.8 m included
Other power cord upon request
Warranty :
Printer and factory mounted options: 12 months
